Your position : Home > Products > Electrochemical Sensors > mini-Series Gas Sensors >

Product List

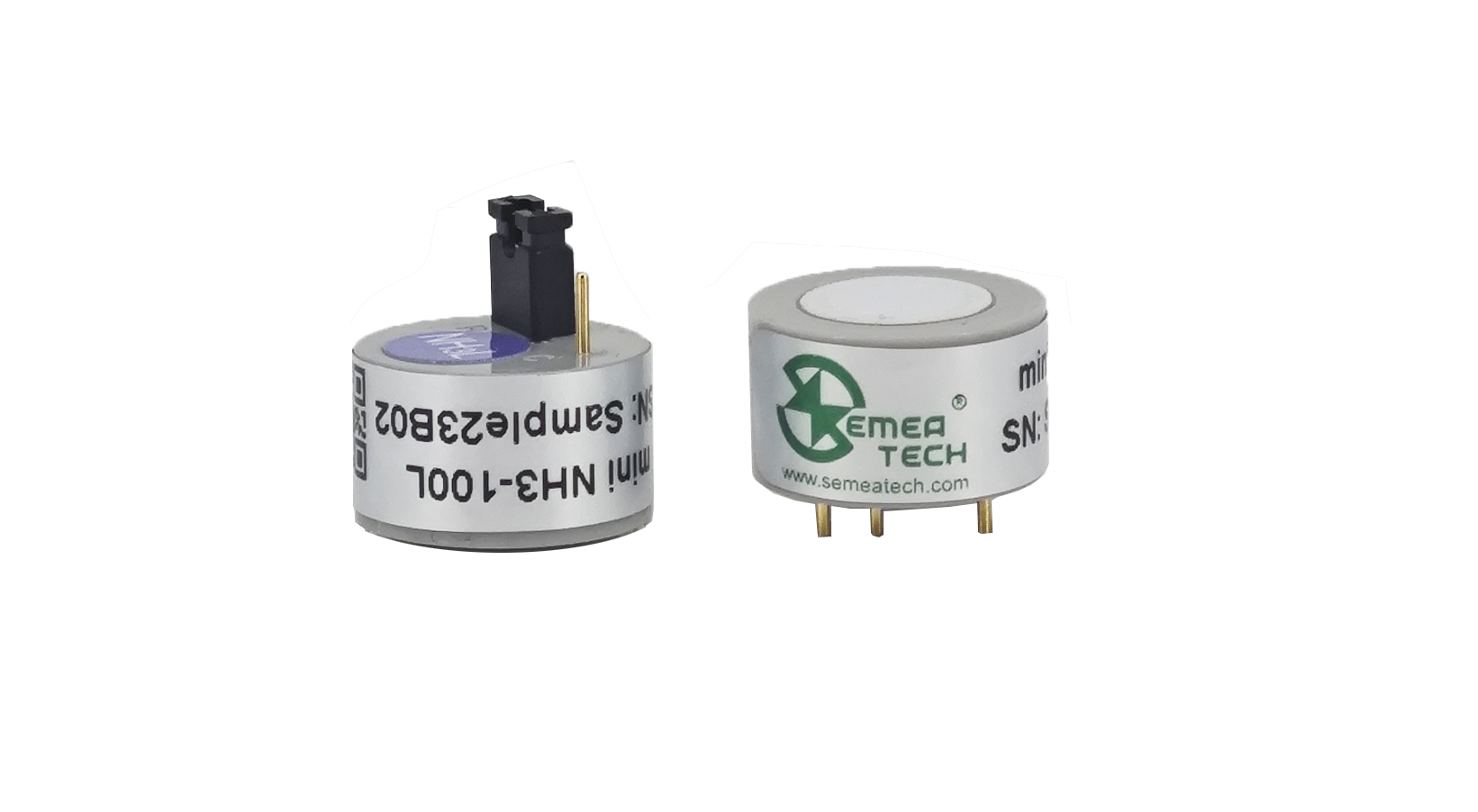

mini-Series NH3-100L Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.05 ± 0.02 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signal: < ±0.2 μA
Resolution: 0.08 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: 0 mV

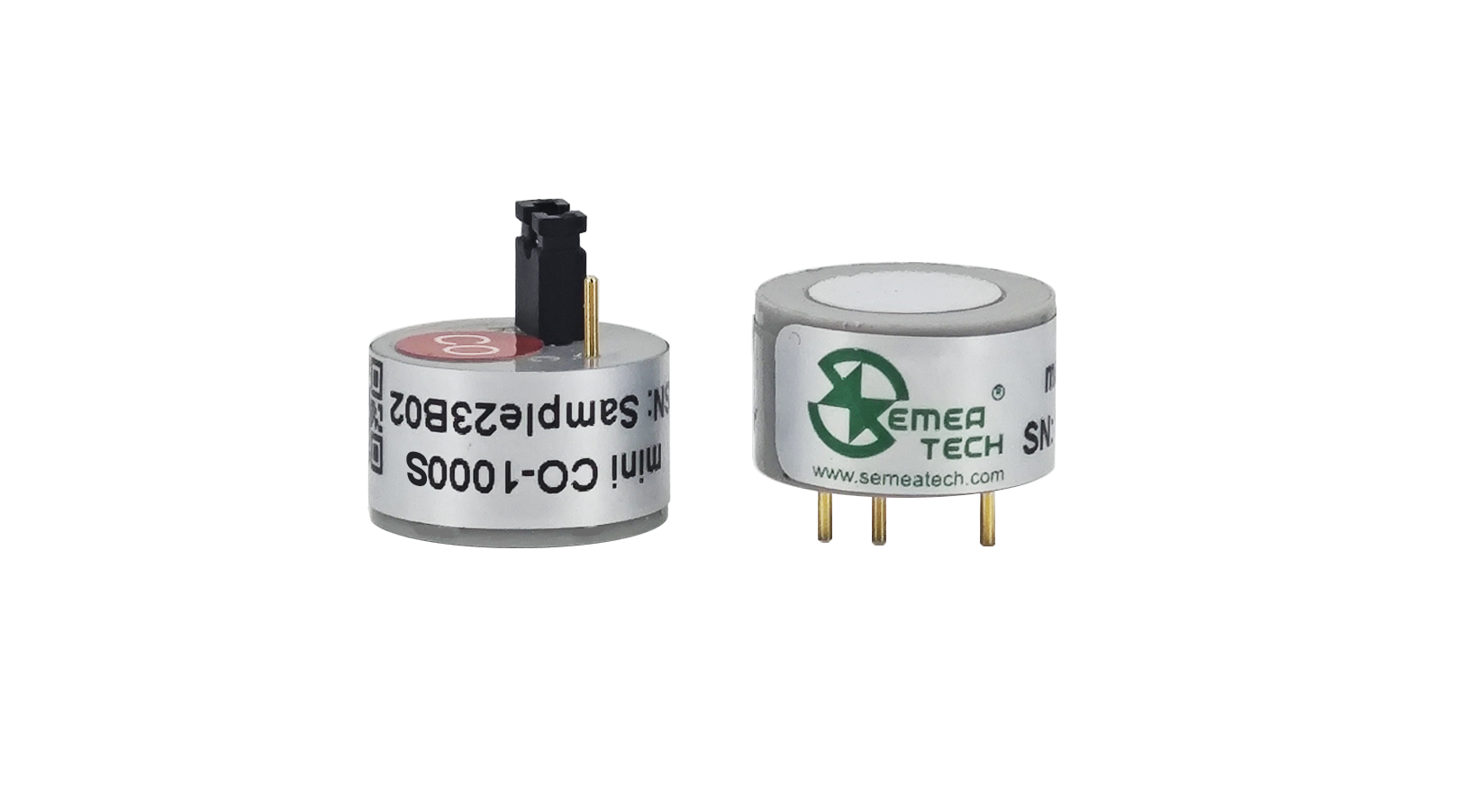

mini-Series CO-1000S Sensor

Nominal Range: 0 ~ 1000 ppm
Maximum Overload: 1500 ppm
Sensitivity: 0.045 ± 0.015 μA/ppm
Response Time (T90): ≤ 20 s
Zero Signal: < ±0.2 μA
Resolution: < 0.18 ppm
Linearity: Linear up to 1000 ppm
Bias Voltage: 0 mV

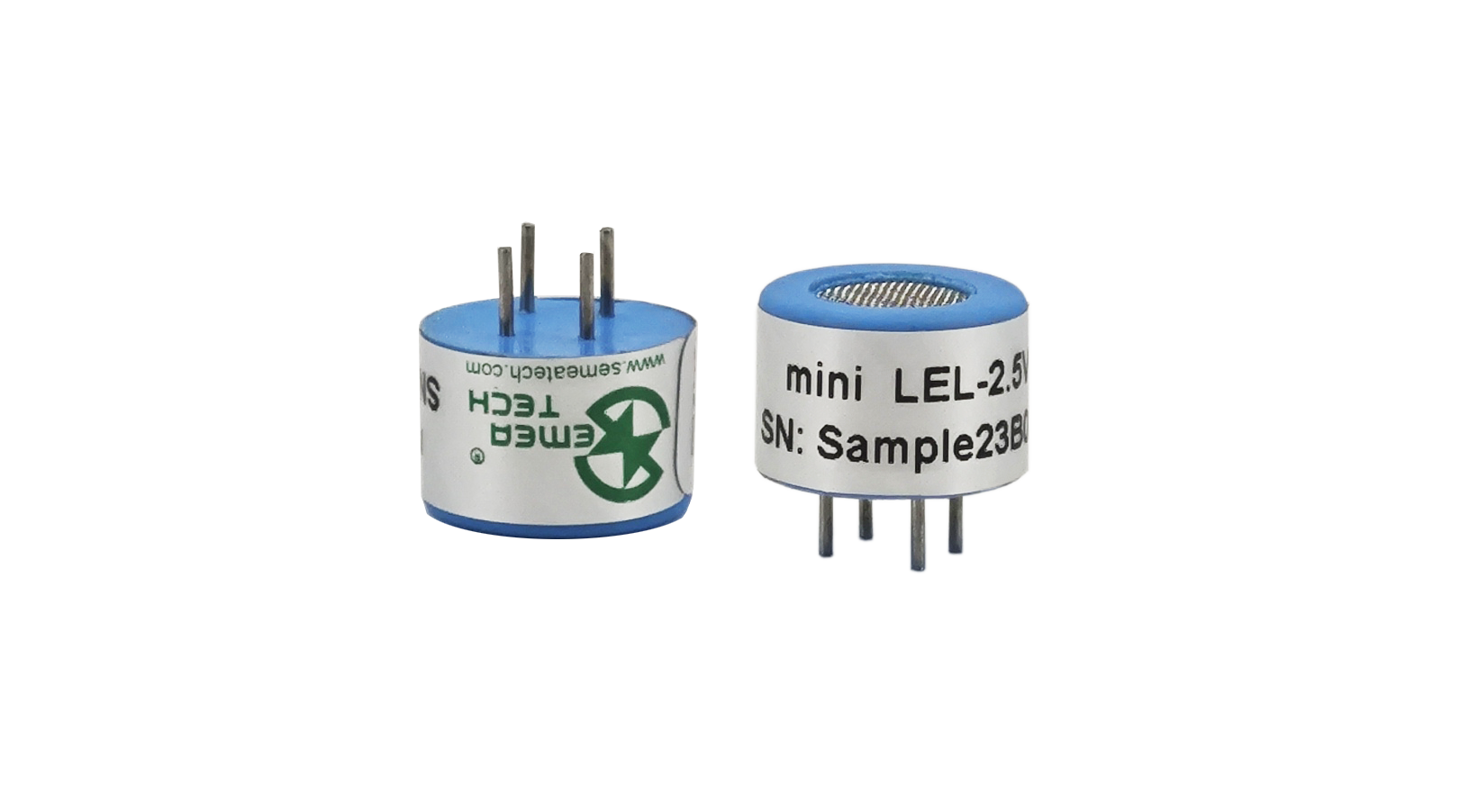

mini-Series LEL-2.5V Sensor

Nominal Range: 0 ~ 100% LEL
Maximum Overload: 100% LEL
Sensitivity (20°C): 43 ± 8 mV/%CH4
Response Time (T90): < 10 s
Working Current: < 125 mA
Linearity: 0 ~ 80% LEL
Working Voltage: 2.5 ± 0.1 VDC
Resolution: < 1% LEL

共 1页3条记录
