Carbon Monoxide
>
Product List
4-Series CO-50 Sensor
Nominal Range: 0 ~ 50 ppm
Maximum Overload: 100 ppm
Sensitivity: 0.5 ± 0.1 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal: <
±0.2
μA
Resolution:
0.15 ppm
Linearity: Linear up to 50 ppm
Bias Voltage:
0 mV
4-Series CO-100 Sensor
Nominal Range: 0 ~ 100 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.4 ± 0.1 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal: <
±0.2
μA
Resolution:
0.5 ppm
Linearity: Linear up to 100 ppm
Bias Voltage:
0 mV
4-Series CO-500S Sensor
Nominal Range: 0 ~ 500 ppm
Maximum Overload: 2,000 ppm
Sensitivity: 0.075 ± 0.020 μA/ppm
Response Time (T90): ≤ 15 s
Zero Signal: <
±0.2
μA
Resolution:
1 ppm
Linearity: Linear up to 500 ppm
Bias Voltage:
0 mV
4-Series CO-1000C Sensor
Nominal Range: 0 ~ 1,000 ppm
Maximum Overload: 2,000 ppm
Sensitivity: 0.060 ± 0.015 μA/ppm
Response Time (T90): ≤ 15 s
Zero Signal: <
±0.2
μA
Resolution:
2 ppm
Linearity: Linear up to 1,000 ppm
Bias Voltage:
0 mV
4-Series CO-1000S Sensor
Nominal Range: 0 ~ 1,000 ppm
Maximum Overload: 2,000 ppm
Sensitivity: 0.060 ± 0.015 μA/ppm
Response Time (T90): ≤ 15 s
Zero Signal: <
±0.2
μA
Resolution:
2 ppm
Linearity: Linear up to 1,000 ppm
Bias Voltage:
0 mV
4-Series CO-2000 Sensor
Nominal Range: 0 ~ 2,000 ppm
Maximum Overload: 5,000 ppm
Sensitivity: 0.028 ± 0.010 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal: <
±0.2
μA
Resolution:
5 ppm
Linearity: Linear up to 2,000 ppm
Bias Voltage:
0 mV
4-Series CO-2000CT Sensor
Nominal Range: 0 ~ 2,000 ppm
Maximum Overload: 2,000 ppm
Sensitivity: 0.075 ± 0.020 μA/ppm
Response Time (T90): ≤ 15 s
Zero Signal: <
±0.2
μA
Resolution:
0.1 ppm
Linearity: Linear up to 2,000 ppm
Bias Voltage:
0 mV

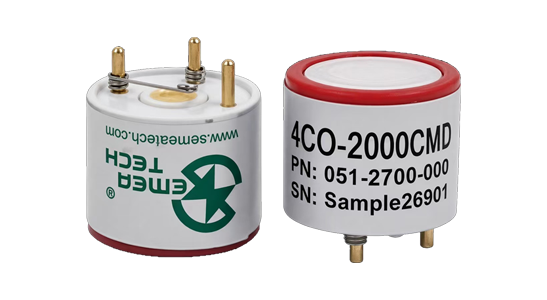

4-Series CO-2000CMD Sensor
Nominal Range: 0 ~ 2,000 ppm
Maximum Overload: 2,000 ppm
Sensitivity: 0.075 ± 0.020 μA/ppm
Response Time (T90): ≤ 15 s
Zero Signal: <
±0.2
μA
Resolution:
0.1 ppm
Linearity: Linear up to 2,000 ppm
Bias Voltage:
0 mV
4-Series CO-5000 Sensor
Nominal Range: 0 ~ 5,000 ppm
Maximum Overload: 10,000 ppm
Sensitivity: 0.025 ± 0.010 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal: <
±0.2
μA
Resolution:
8 ppm
Linearity: Linear up to 5,000 ppm
Bias Voltage:
0 mV
4-Series CO-10000 Sensor
Nominal Range: 0 ~ 10,000 ppm
Maximum Overload: 20,000 ppm
Sensitivity: 0.0175 ± 0.0075 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal: <
±0.2
μA
Resolution:
10 ppm
Linearity: Linear up to 10,000 ppm
Bias Voltage:
0 mV
4-Series CO-20000 Sensor
Nominal Range: 0 ~ 20,000 ppm
Maximum Overload: 20,000 ppm
Sensitivity: 0.015 ± 0.005 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal: <
±0.2
μA
Resolution:
10 ppm
Linearity: Linear up to 20,000 ppm
Bias Voltage:
0 mV
