Product List

4-Series HCL-20 Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 50 ppm
Sensitivity: 0.35 ± 0.15 μA/ppm
Response Time (T90): ≤ 70 s
Zero Signal: < ±1 μA
Resolution: 0.2 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: +200 mV

4-Series HCL-20U Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 50 ppm
Sensitivity: 0.35 ± 0.15 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signal: < ±0.2 μA
Resolution: 0.06 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

4-Series HCL-50 Sensor

Nominal Range: 0 ~ 50 ppm
Maximum Overload: 100 ppm
Sensitivity: 0.3 ± 0.1 μA/ppm
Response Time (T90): ≤ 70 s
Zero Signal: < ±1 μA
Resolution: 0.4 ppm
Linearity: Linear up to 50 ppm
Bias Voltage: +200 mV

4-Series HCL-50U Sensor

Nominal Range: 0 ~ 50 ppm
Maximum Overload: 100 ppm
Sensitivity: 0.3 ± 0.1 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signal: < ±0.2 μA
Resolution: 0.1 ppm
Linearity: Linear up to 50 ppm
Bias Voltage: 0 mV

4-Series HCL-100 Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 100 ppm
Sensitivity: 0.2 ± 0.1 μA/ppm
Response Time (T90): ≤ 70 s
Zero Signal: < ±1 μA
Resolution: 1.5 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: +200 mV

4-Series HCL-200 Sensor

Nominal Range: 0 ~ 200 ppm
Maximum Overload: 400 ppm
Sensitivity: 0.08 ± 0.03 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signal: < ±1 μA
Resolution: 1.5 ppm
Linearity: Linear up to 200 ppm
Bias Voltage: +200 mV

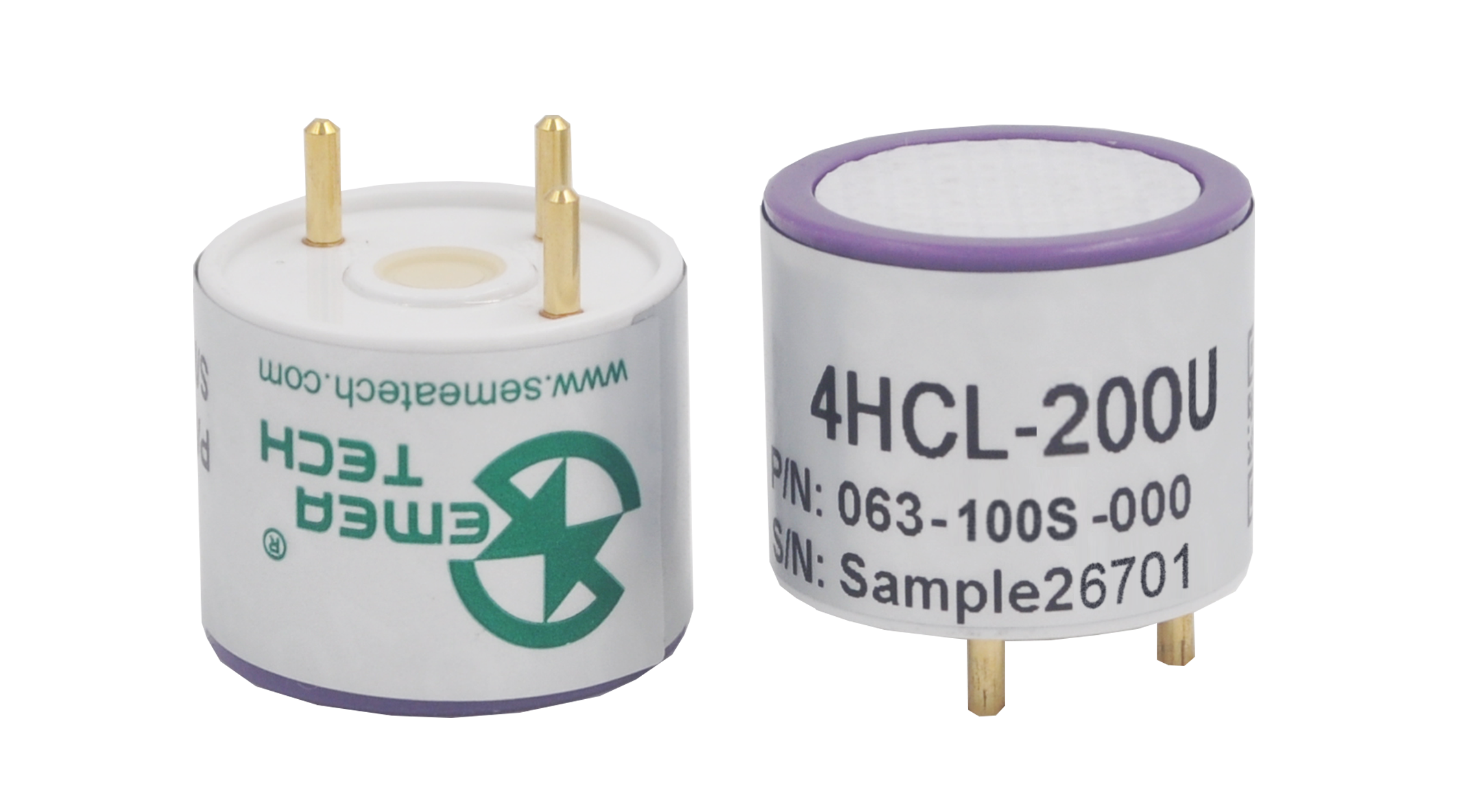

4-Series HCL-200U Sensor

Nominal Range: 0 ~ 200 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.070 ± 0.015 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signal: < ±0.2 μA
Resolution: 0.1 ppm
Linearity: Linear up to 200 ppm
Bias Voltage: 0 mV
