Product Introduction

HF-15 Sensor Calibrator

Product Description

This hydrogen fluoride (HF) sensor calibrator is designed for the calibration and bump test of HF gas detectors or sensors. It can be used in the laboratory and is also convenient to use in the field. This device consists of a HF gas carrier, an equilibrium gas chamber, an on/off valve, and an LCD display. It is reliable and easy to operate.

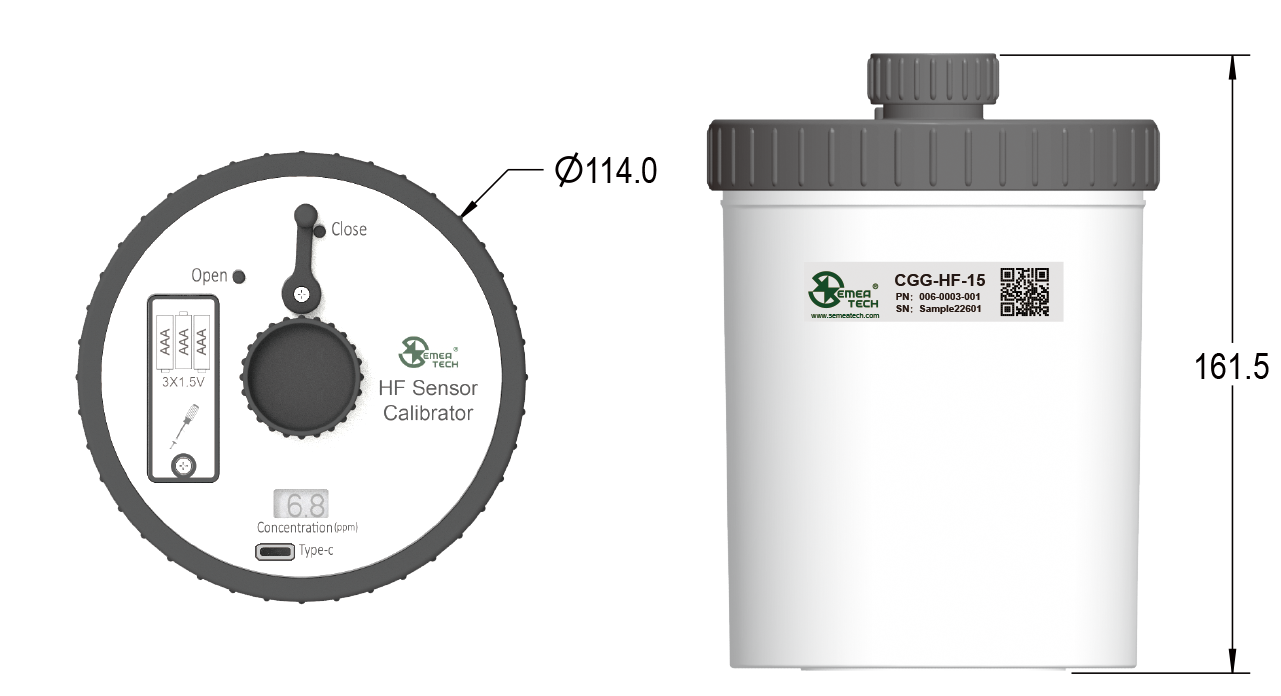

Product Dimensions

Performance Characteristics

Concentration range(HF)：	1~15 ppm
Accuracy：	+/-15%

Environmental

Temperature Range:	15°C ~ 30°C
Pressure Range:	1 ± 0.1 atm
Humidity Range:	15% ~ 90%RH non-condensing

Life Time

Recommended Storage Temp:	10°C ~ 30°C
Expected Operating Life:	6 months or 200 times(Whichever occurs first)

Physical Characteristics

Housing Material:	Container PP, Cap PA66
Weight (Nominal):	220 g
