7E4-NO2-5 sensor
Datasheet download
Product Description

This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NO2 gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect ozone variations at parts per billion (ppb) levels.

Performance Characteristics
Nominal Range 0 ~ 5 ppm
Maximum Overload 20 ppm
Sensitivity (20℃) -0.50 ± 0.15 μA/ppm
Response Time (T90) ≤ 60 s
Zero Signal (20℃) < ±70 nA
Baseline Shift (-40℃ ~ 50℃) < 50 ppb (After compensation)
Resolution 10 ppb
Linearity Linear up to 5 ppm
Bias Voltage 0 mV

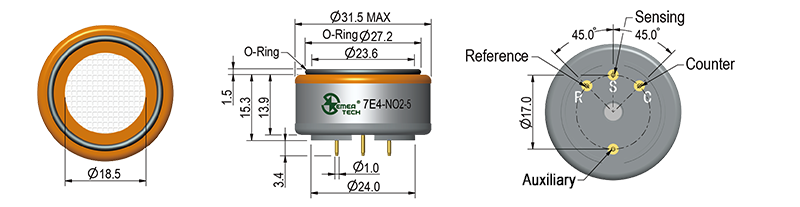

Product Dimensions

Temperature Range -40℃ ~ 50℃
Pressure Range 1 ± 0.1 atm
Humidity Range 15% ~ 90%RH non-condensing
Life Time
Long Time Output Drift < 2% signal/month
Recommended Storage Temp 10℃ ~ 30℃
Expected Operating Life 3 years in clean air
Storage Life 6 months in original packaging
Warranty 24 months
Intrinsic Safety Data
Max. Current at 20ppm NO2 < 0.2 mA
Max. O/C Voltage 1.3 V
Max. S/C Current < 1.0 A
Physical Characteristics
Housing Material ABS
Weight (Nominal) 8 g
Orientation None

Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.

Cross-Sensitivity Data
Gas Concentration (ppm) Output Signal (ppb NO2 equivalent)
Carbon Monoxide 5 23.0
Nitric Oxide 5 56.0
Sulfur Dioxide 5 38.0
Ammonia 20 8.0
Ethylene 100 22.0
Hydrogen Sulfide 5 78.0
Chlorine 5 1,084.0
Hydrogen 100 11.0
Ozone 0.5 Filter capacity > 500

Note: The cross sensitivities include but not limited to the above gases. It may also respond to other gases. The data in the table above may vary from different batches of sensors and the changes of test environment. Calibration using the gases that have the cross sensitivities to this sensor is not recommended.

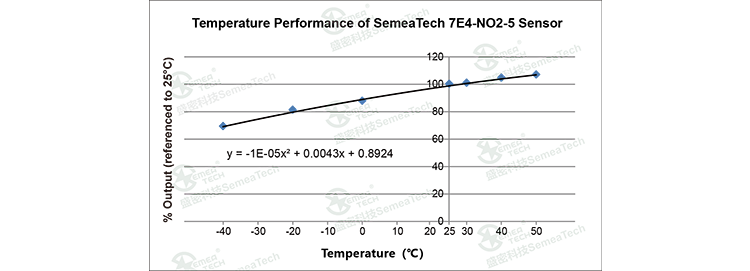

Temperature Data

Safety Note

The sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
