Product List
4SMART-C01 Module
Product Model: 4SMART-C01
Detectable Gas Types: Toxic and harmful gases
Detection Principle: Electrochemical
Measurement error: < ±5%FS
Operating Voltage: (3.3 ~ 5.5) VDC
Operating Current:
≤ 5 mA @ 3.3 VDC
Output Mode: UART (3.0V TTL)
DAC(0.4 ~ 2.0VDC Default)
Operating Temperature:
-20°C ~ 50°C
RS485 Transmitter
This RS485 transmitter is specifically designed to pair with SemeaTech 4SMART-C01 sensor modules. The transformation of TTL-485 signals from the modules can seamlessly occur by directly connecting them to the transmitter, requiring no configuration or adjustments.

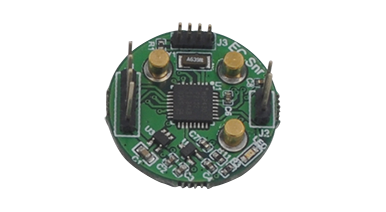

4ECM-SMART Module PCBA
Product Model: 4ECM-Smart
Detectable Gas Types: Toxic and harmful gases
Measurement Error: < ±5%FS
Operating Voltage: 4 ~ 6 VDC
Operating Current:
≤ 2 mA @ 5.0 VDC
Output Mode: UART (3.3V TTL)
Operating Temperature: -20℃ ~ 50
℃

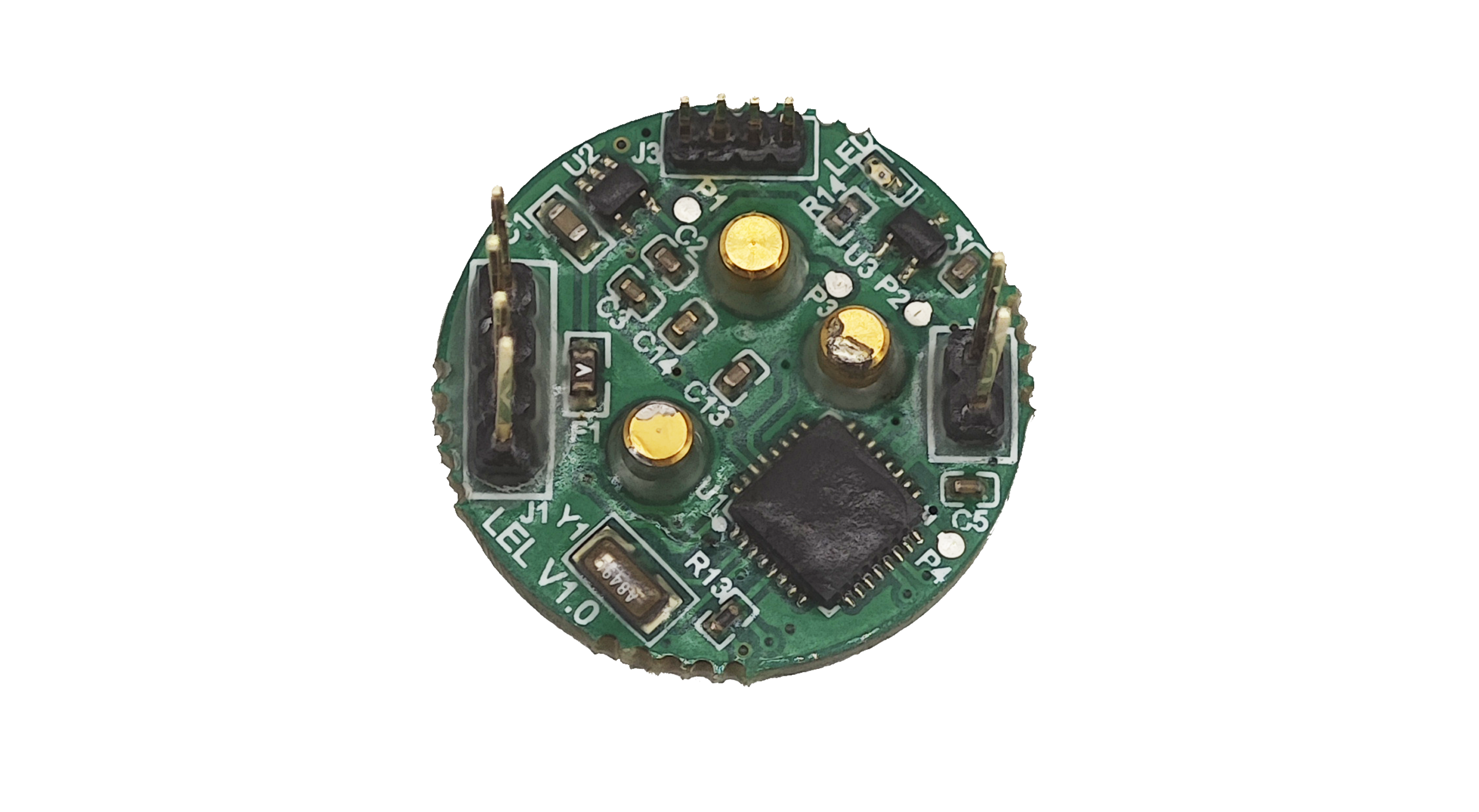

4LEL-SMART Module PCBA
Product Model: 4LEL-Smart
Detectable Gas Types: Combustible gas
Measurement Error: < ±5%FS
Operating Voltage: 3.3 ~ 3.6 VDC
Operating Current:
≤ 110 mA @ 3.3 VDC
Output Mode: UART (3.3V TTL)
Operating Temperature: 0℃ ~ 40
℃

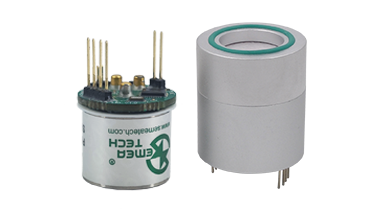

4LEL-Smart Module
Product Model: 4LEL-Smart
Detectable Gas Types: Combustible gas
Measurement Error: < ±5%FS
Operating Voltage: 3.3 ~ 3.6 VDC
Operating Current:
≤ 110 mA @ 3.3 VDC
Output Mode: UART (3.3V TTL)
Operating Temperature: 0℃ ~ 40
℃
4ECM-SMART Module
Product Model: 4ECM-Smart
Detectable Gas Types: Toxic and harmful gases
Measurement Error: < ±5%FS
Operating Voltage: 4 ~ 6 VDC
Operating Current:
≤ 2 mA @ 5.0 VDC
Output Mode: UART (3.3V TTL)
Operating Temperature: -20℃ ~ 50
℃
7 SMART Module
Detection Range:
Refer to sensor data sheet
Operating Voltage: 3.2 ~ 5.5 V
Operating Current: ≤
5 mA
@ 5V
Operating Temperature: -20℃ ~ 55℃
Output Mode:
UART (3.3V TTL)
I
²
C (3.3V TTL)
Dimensions：Φ 33.5 x 31 mm
