Product Introduction
4LEL-Smart Module
Datasheet download
Product Description

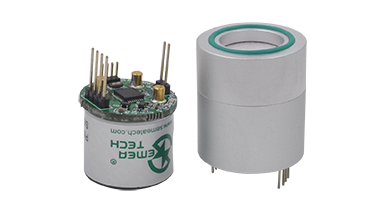

This 4LEL-Smart Sensor Module consists of a data collection and processing PCB assembly, a SemeaTech 4-Series Catalytic combustion (LEL) sensor, and a metal enclosure. The PCB assembly in the module collects the data from the gas sensor output, and then processes it with amplification, sampling and filtration through a built-in MCU to deliver stable and accurate digital output reflecting the actual target gas concentration. The 4LEL-Smart Sensor Module delivers the signal output through UART bus, which provides a good user experience for quickly integrating gas sensors into the existing systems for a variety of gas detection applications. Users can visit the website for detailed sensor parameters.
Technical Parameters
|
Product Model |
4LEL-Smart |
|
Detectable Gas Types |
Combustible gas |
|
Detection Principle |
Catalytic combustion |
|
Gas Concentration Range |
0 ~ 100% LEL |
|
Resolution |
1% LEL |
|
Measurement Error |
< ±5%FS |
|
Operating Voltage |
(3.3 ~ 3.6) VDC |
|
Operating Current |
≤ 110 mA @ 3.3 VDC |
|
Output Mode |
UART (3.3V TTL) |
|
Operating Temperature |
0℃ ~ 40℃ |
|
Operating Humidity |
≤ 98%RH (25°C) |
|
Operating Pressure |
86 ~ 116 KPa |
|
Storage Temperature |
-20℃ ~ 40℃ |
|
Dimensions |
Φ 24.2 x 26.8 mm |
