mini-Series O2-LF Sensor
Datasheet download
Product Description

This is a miniature Oxygen sensor for measuring Oxygen gas concentration. It is designed mainly for handheld and compact instruments.

Performance Characteristics
Nominal Range 0 ~ 25% vol oxygen
Maximum Overload 30% vol oxygen
Output Signal (20℃) -100 ± 20 μA in air
Response Time (T90) ≤ 15 s
Zero Signal (20℃) ±0.6% vol oxygen
Resolution 0.1% vol oxygen
Linearity Theoretical formula: K*Ln(1/(1-c))
  The error is <±5%FS or <0.3%vol, whichever is the less
Bias Voltage -600 mV
Warm Up Time 15 minutes
Repeatability < ±5%

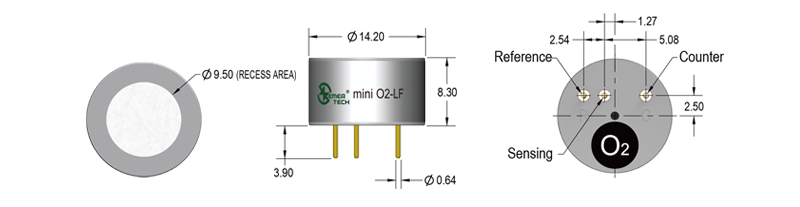

Product Dimensions

Environmental
Temperature Range -40℃ ~ 50℃
Pressure Range 1 ± 0.1 atm
Humidity Range 15% ~ 90%RH non-condensing
Life Time
Long Time Output Drift < 5% signal/year
Recommended Storage Temp 10℃ ~ 30℃
Expected Operating Life 2 years in clean air
Storage Life 12 months in original packaging
Warranty 24 months

Physical Characteristics
Housing Material ABS
Weight (Nominal) 1.5 g
Orientation None
RoHS Compliance RoHS Compliant
Installation

Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.

Cross-Sensitivity Data
Gas Concentration Output Signal (% O2 equivalent)
Carbon Dioxide 5% 0.0
Hydrogen 2,000 ppm -0.2

Note: The cross sensitivities include but not limited to the above gases. It may also respond to other gases. The data in the table above may vary from different batches of sensors and the changes of test environment. Calibration using the gases that have the cross sensitivities to this sensor is not recommended.

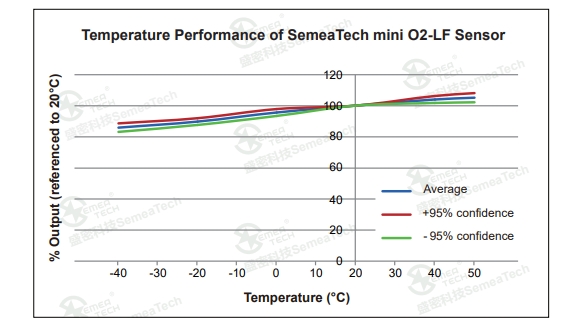

Temperature Data

Safety Note

This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
